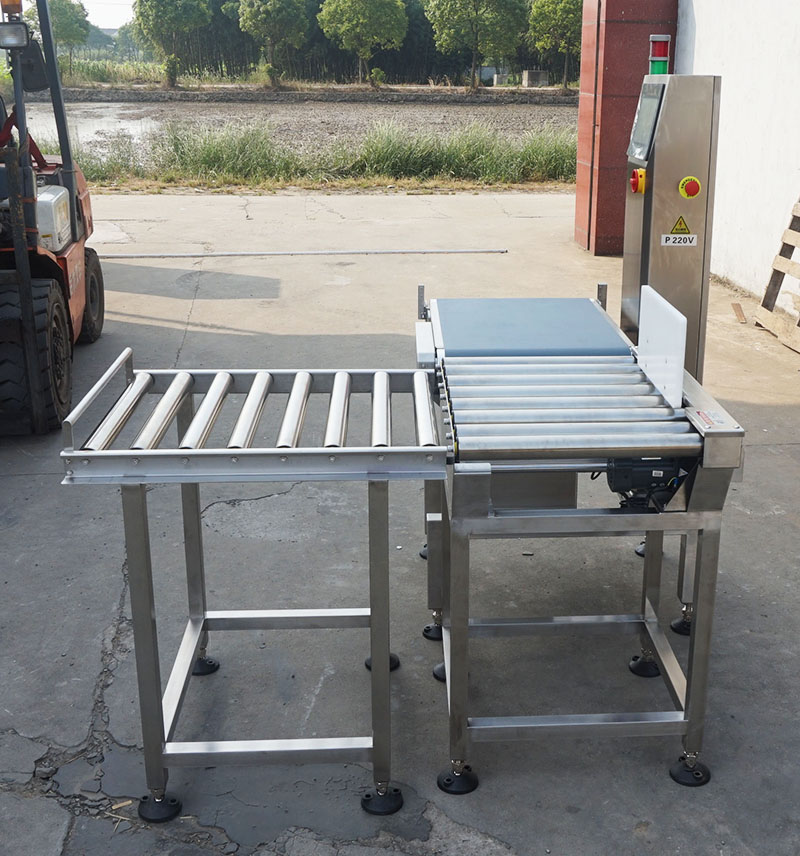

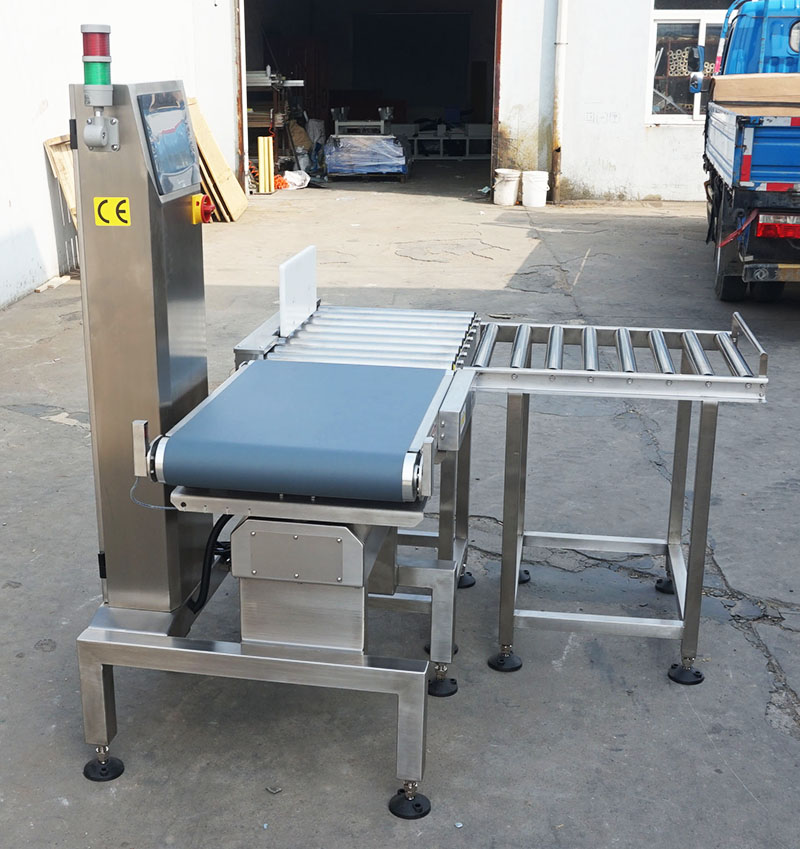

Automatic Checkweigher
Mainly applied for products’ quality inspection & classification in automatic production line, and also be used for products’ weight information detection after packaging.
It can replace manual weighing to improve production efficiency and weighing consistency and reliability.
Weighing Range | 100g-30/50kg |
Conveying Speed （m/min） | 5-50m |
Max Speed（Package/min） | 60pcs |
Accuracy | ±10g |
Minimum Scale | 5g |
Conveyor Width | 500mm |
Rejection Method | Drum conveying + Pusher rejection (0ptional) |
Product Preset Mode | 50 sets |
Power Supply | 220V50HZ,Single-phase |
Power | 200w |
External Air Supply | / |
Pneumatic Interface | 8mm |
Reserved Interface (Optional) | / |
International Protection (IP) | Complies with IP-30（PB）International Standard |
Weight | 95kg |
Height from the ground to the conveyor | 730±50mm（ Can be customized ） |
1. Dimensions
2、Usage:
1)Mainly applied for products’ quality inspection & classification in automatic production line, and also be used for products’ weight information detection after packaging.
2)It can replace manual weighing to improve production efficiency and weighing consistency and reliability.
3) Widely used in pharmacy, food industry, daily chemical products, industrial manufacturing, printing, logistics and other industries.
3、Features:
Colorful large touch screen interface for simple operation & intuitive display.
Reinforced stainless steel 304 rack as per GMP & HACCP specifications
Simple mechanical structure, can be quickly disassembled for cleaning & maintenance.
50 product presets for easy switching to operate.
Automatic Zero analysis & tracking system to ensure stable detection.
Temperature-noise compensation system embedded to ensure reliable data.
Dynamic weight compensation technology, makes the detection data more real & effective.
Parameter with password protected, only assigned staff can operate.
Powerful self-diagnostics function, effectively improve the operator to handle faults.
Operation Interface：
Standard Configuration：
Item | Quantity | Brand |
Monitor | 1 | Weinview 10 inch screen |
Motor | 2 | Taiwan GPG Motor |
Frequency Converter | 1 | German Winmo |
Program Controller | 1 | Japan Mitsubish |
Belt | 1 | Swiss Habasit |
Pneumatic Components | 1 set | Taiwan AirTAC |
Sensor | 1 | German HBM |
Photoelectric Switch | 1 | Japan OMRON |
Air Switch | 1 | Japan Mitsubish |
Relay | 2 | Japan OMRON |
