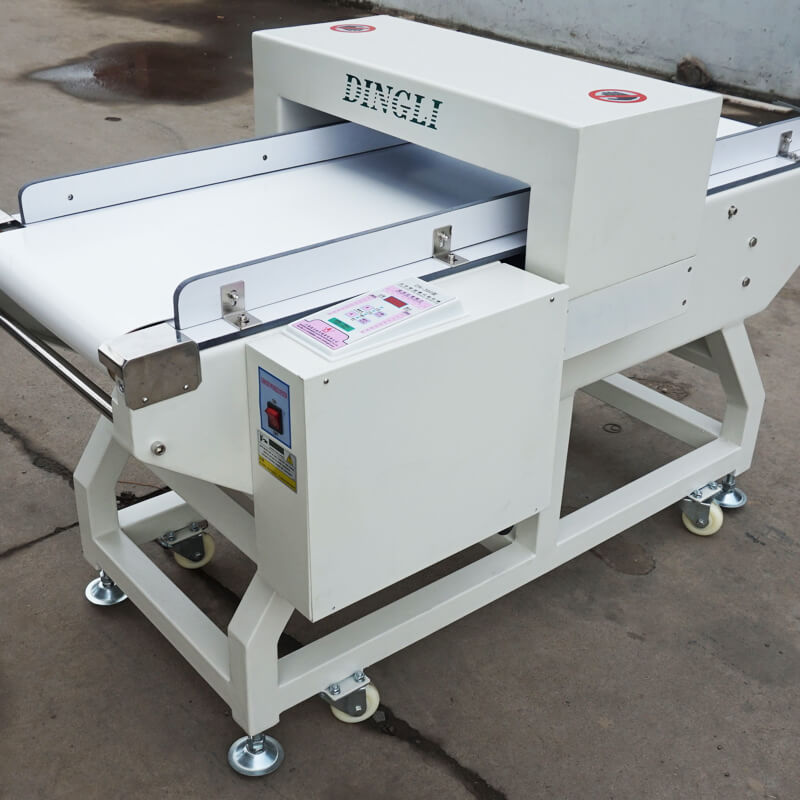

DN-380 Automatic Conveyor Needle Detector is one of basic models of our company. It is good for clothing,shoes,toys,textiles,knitwear and so on. It is fit to any enterprises which need detect broken needle or ferromagnetic metal.
The DN-380 can keep a long time to work,the efficiency can reach 100% when properly used.The detection sensitivity can be adjusted between 0-10 levels according to the different products being tested.Operation board is light touching-type, easy to operate.
When the machine detect the broken needle, or Ferromagnetic metal, it will alarm by sound and light,the conveyor belt will stop working or return to the start point,and then move automatically again.Specially,the DN-380 has protection circuit, it will auto-stop if no detection goods in 10 minutes.
Specifications
Description | Compact Needle Detector | |||
Model | DN-380 | |||
Standard | 3010 | 3015 | 4010 | 4015 |
Power Supply | Ac220V 50-60Hz | |||
Motor | 60W | 60W | 60W | 90W |
Main material | High strength carbon steel and ABS plastics | |||
Detection Width | 300mm | 300mm | 400mm | 400mm |
Detection Height | 100mm | 150mm | 100mm | 150mm |
Detection Sensitivity | Fe≥φ0.8mm | Fe≥φ1.0mm | Fe≥φ0.8mm | Fe≥φ1.0mm |
The height from the ground to the conveyor belt | 680mm | |||
Belt width | 360mm | |||
conveying capacity | 10KG | 15KG | ||
Conveying Direction | from left to right | |||
Conveyor maximum speed | 26m/min | |||
Conveyor belt material | PVC belt for Needle Detector | |||
Display and operation mode | Soft Touch Control Panel | |||
Alarm method | Alarm by sound & light, the conveyor belt stops | |||
1320mm | 1420mm | |||
Machine width | 750mm | 850mm | ||
Machine height | 910mm | 960mm | 910mm | 960mm |
Remark：
1. The above detection sensitivity is for reference only, and the actual detection accuracy needs to be tested.
2. Special specifications can be customized according to customer's requirements.
3, the product of sensitivity and detection of product characteristics (humidity, temperature, salinity, including minerals, etc.), and there are some impact on the environment, such as vibration, electromagnetic interference, and so on will have influence on the actual detection sensitivity of equipment.
Description of Equipment
A.Design advantages:
1.Using a customized motor, the conveyor belt can be adjusted forward and reverse function freely.
2.Our needle detector adopts digital signal processing technology, which effectively improves the stability of equipment operation and reduces the probability of false alarm.
3.The detection probe and frame are made of high-strength carbon steel. The lightweight body design saves the space of assembly line. It is treated with anti-corrosion, rust, dust-proof and waterproof, which is sanitary and durable and suitable for humid working environment.
B.Configuration advantages:
1.Electrical accessories are international famous brands, environmental protection energy saving, safe and reliable.
2.Adopt special conveyor belt specially made for needle detector，compared with ordinary belt, it has stronger anti-pollution performance.
3.Load-bearing board suppliers for Shanghai insulation materials factory, the factory is a state-owned large enterprises, product quality can absolutely guarantee.
