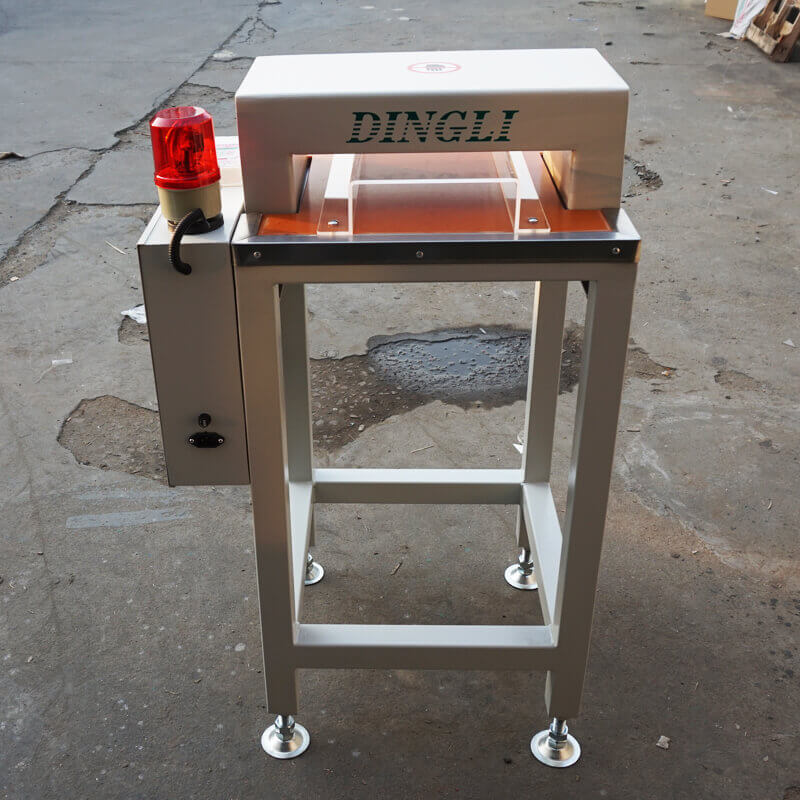

DN-380 Production Line Needle Detector for narrow goods mainly designed for narrow fabrics such as ribbon, shoelace and tie, especially suitable for online needle broken detection or foreign body metal detection of narrow fabrics, cloth, microfiber, home textile products and other materials.
Description | Production Line Needle Detector | |
Model | DN-380 | |
Standard | 200 | 300 |
Power Supply | Ac220V 50-60Hz | |
Power | About 50W | |
Main material | High strength carbon steel | |
Body Frame | Can be customized according to customer requirements | |
Detection Width | 150mm | 250mm |
Detection Height | 50mm/80mm | |
Detection Sensitivity | Fe≥φ0.8mm | |
Display and operation mode | Soft Touch Control Panel | |
Alarm method | Alarm by sound & light | |
Remark：
1、The above detection sensitivity is for reference only, and the actual detection accuracy needs to be tested.
2、Special specifications can be customized according to customer's requirements.
3、The product of sensitivity and detection of product characteristics (humidity, temperature, salinity, including minerals, etc.), and there are some impact on the environment, such as vibration, electromagnetic interference, and so on will have influence on the actual detection sensitivity of equipment.
