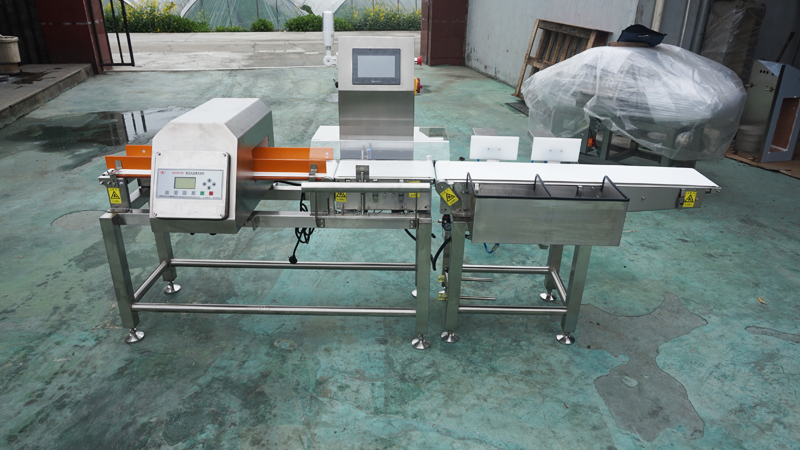

Sl-210/300-8500 can be used for metal detection and weight detection at the same time.
Suitable for packaging factory and limited installation space in all areas.
The machine body design is compact, the metal detection machine and the weight detection machine are perfectly integrated in a set of body frame, so that the production line space requirements will be minimal, convenient and effective installation in the existing production factory.
Name | Integrated Metal Detector & Check Weigher | ||
Model | SL-210-8500 | SL-300-8500 | |
Detecting range | 5g-1kg | 5g-3kg | |
accuracy | ±0.3g~±1g | ±0.5g~±2g | |
Scale Interval | 0.1g | 0.1g | |
Speed | 0~40m/min | 0~40m/min | |
Weigher platform size | Length | 400mm | 400mm |
Width | 210mm | 300mm | |
Height | 100mm | 100mm | |
Sensitivity： | Fe≥φ0.8mm，Sus≥φ2.0mm，Non-Fe≥φ1.5mm | ||
Weighed product size | Length | ≤280mm | ≤280mm |
Width | ≤200mm | ≤290mm | |
Height | ≥3mm | ≥3mm | |
Interface | 7 inch color LCD screen | ||
Mode of operation | Touch type operation | ||
Products Storage Quantity | 100 kinds | ||
Belt height above ground | 700+50mm（Can be customized according to customer requirements） | ||
Zero tracking | Automatic zero tracking | ||
Alarm way | Buzzer, alarm light, Automatic elimination of defective products | ||
Rejecter | Pusher，Air Jet，Drop Down and Diverter for optional | ||
External Interface | RS232 (default). Other options are required | ||
Auxiliary equipment | Conveyor, packaging machine, etc | ||
Power Supply | 220V 50Hz | ||
Power | About 300W | ||
Mani Material | 304 Stainless Steel | ||
IP Rate | IP30/IP54 | ||
Working environment | 0℃-40℃（To ensure accuracy, temperature change should not exceed the range of ±5℃/h, relative humidity 30-95%, but no frost） | ||
