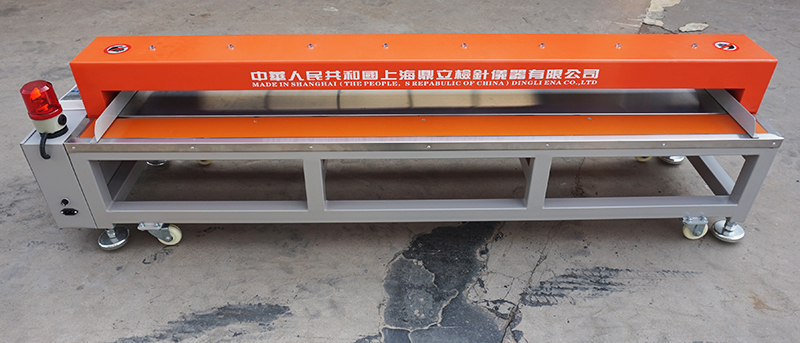

JZQ-2000 Super Wide Conveyor Type Automatic Needle Detector use super-wide detection technology,is different form ordinary detector, custom-build machine width of up to several meters.The detector is used in critical detecting broken needle on bedding products.
Applicable
Bedding, non-woven fabrics, piece goods, etc, which are in large width.
Model | JZQ-2000 | JZQ-2000-2 |
Equipment Brand | DINGLI | |
Specification | 2000×100 | |
Power Supply | Ac220V 50-60Hz | |
Motor | 200W | |
Main material | High strength Carbon Steel | |
Effective Detection Width | 2000mm | 2000mm |
Effective Detection Height | 100mm | 100mm |
Detection Sensitivity | Fe≥φ1.0mm | Fe≥φ1.0mm |
Display and operation mode | Soft Touch Control Panel | |
The height from the ground to the conveyor belt | 680mm（customizable） | |
输送带承重conveying capacity | 30kgs | / |
Conveying Direction | from left to right | |
Conveyor speed | 25m/min | 20m/min |
Conveyor belt material | PVC belt for Needle Detector | |
L×W×H Dimensions（mm） | 2050×2500×920 | 500×2450×900 |
L×W×H Packing Volume（mm） | 2200×2650×1080 | 650×2550×1000 |
N.W/G.W | 250kgs/300kgs | 200kgs/260kgs |
JZQ-2000 Super Wide Conveyor Type Automatic Needle Detector use super-wide detection technology,is different form ordinary detector, custom-build machine width of up to several meters.The detector is used in critical detecting broken needle on bedding products.
Applicable
Bedding, non-woven fabrics, piece goods, etc, which are in large width.
Model | JZQ-2000 | JZQ-2000-2 |
Equipment Brand | DINGLI | |
Specification | 2000×100 | |
Power Supply | Ac220V 50-60Hz | |
Motor | 200W | |
Main material | High strength Carbon Steel | |
Effective Detection Width | 2000mm | 2000mm |
Effective Detection Height | 100mm | 100mm |
Detection Sensitivity | Fe≥φ1.0mm | Fe≥φ1.0mm |
Display and operation mode | Soft Touch Control Panel | |
The height from the ground to the conveyor belt | 680mm（customizable） | |
输送带承重conveying capacity | 30kgs | / |
Conveying Direction | from left to right | |
Conveyor speed | 25m/min | 20m/min |
Conveyor belt material | PVC belt for Needle Detector | |
L×W×H Dimensions（mm） | 2050×2500×920 | 500×2450×900 |
L×W×H Packing Volume（mm） | 2200×2650×1080 | 650×2550×1000 |
N.W/G.W | 250kgs/300kgs | 200kgs/260kgs |
