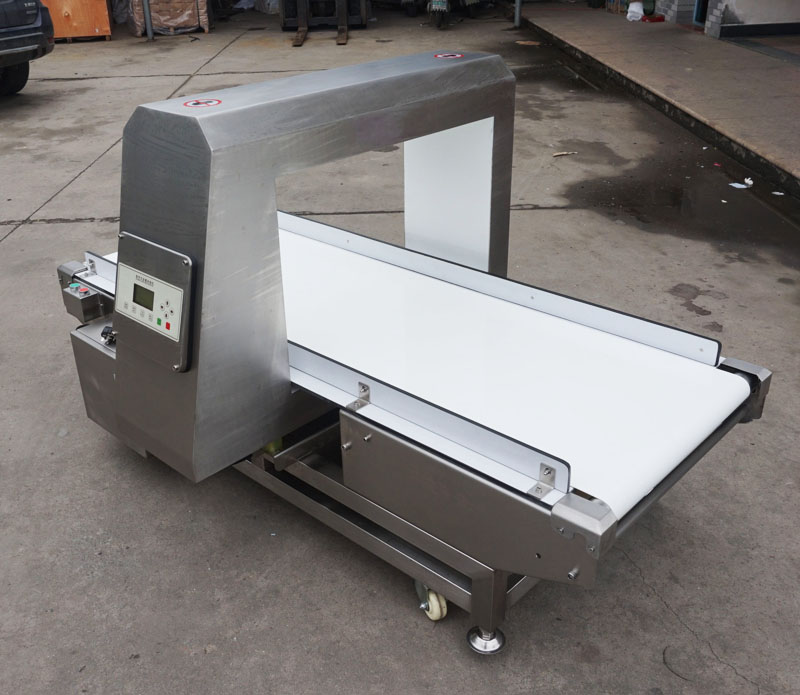

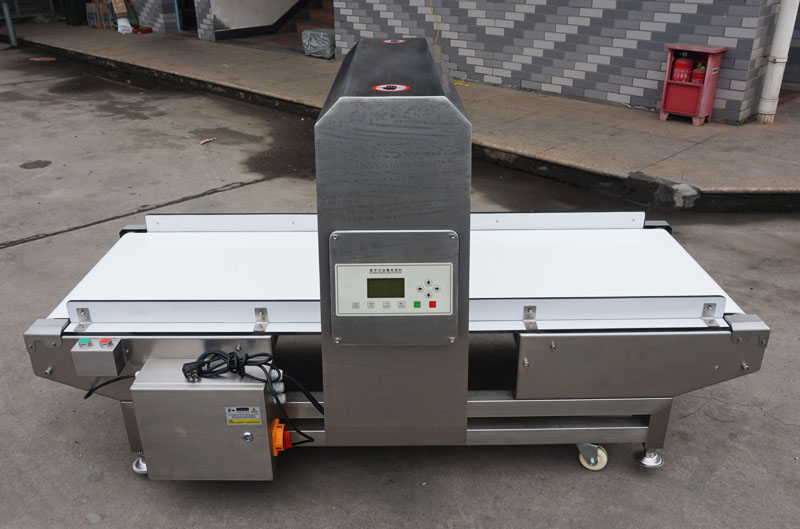

Automatic Digital metal detection machine can identify the various magnetic and nonmagnetic metal (such as iron, stainless steel, aluminum, etc.), even a tiny metal embedded in the product can also be tested to recognize.The whole machine conforms to European Union CE certification.
Application
Detect the metal impurities in the raw material or products of food, aquatic products processing, toys, clothing, shoes, chemicals, leather, and textile and so on. E.g.: Fe and the non-ferromagnetism metal goods (iron, copper, aluminum, stainless steel and non-ferrous metal) all can be detected, to improve the safety of the products .
Specification
Description | Automatic Digital Metal Detector | |||||
Model | MD-8500 | |||||
Standard | 6030 | 6040 | 8040 | 8050 | ||
Power Supply | Ac220V 50-60Hz | |||||
Motor | 60W | 60W | 60W | 90W | ||
Main material | 304 stainless steel | |||||
Detection Width | 600mm | 600mm | 800mm | 800mm | ||
Detection Height | 300mm | 400mm | 400mm | 500mm | ||
Detection Sensitivity | Fe≥φ2.0mm，Non-Fe≥φ2.5mm，Sus≥φ3.5mm | Fe≥φ3.0mm，Non-Fe≥φ3.5mm，Sus≥φ4.0mm | Fe≥φ3.0mm，Non-Fe≥φ4.0mm，Sus≥φ5.0mm | Fe≥φ4.0mm，Non-Fe≥φ5.0mm，Sus≥φ6.0mm | ||
The height from the ground to the conveyor belt | 700mm | |||||
Belt width | 470mm | 470mm | 470mm | 470mm | ||
conveying capacity | 30KG | 40KG | 50KG | |||
Conveying Direction | from left to right | |||||
Conveyor maximum speed | 30m/min or custom adjustable frequency conversion speed | |||||
Conveyor belt material | Food grade PVC/PU belt | |||||
Display and operation mode | LCD Screen with soft key button input (Optional touch screen) | |||||
Products Storage Quantity | 100 kinds | |||||
Alarm method | Alarm by sound & light, the conveyor belt stops or automatic selection by pusher reject | |||||
Surface Treatment | Brushed stainless steel | |||||
IP grade | IP30（international standard） | |||||
Remark：
1. The above detection accuracy is for reference only. The actual detection accuracy shall be obtained after testing.
2. Special specifications can be customized according to customer requirements.
3. The material used for metal detection machine is SUS304, dustproof and waterproof.
4. The detection sensitivity is related to the characteristics of the tested product (humidity, temperature, salt content, mineral content, etc.). In addition, some environmental influences, such as vibration, electromagnetic interference, etc., will have an impact on the actual detection sensitivity of the equipment.
Description of Equipment
Remarks:
A.Design advantages:
1. With automatic identification of product features, 100 product information storage function, automatic phase tracking function, also optional conveyor belt automatic positive and negative rotation function.
2. Advanced digital signal processing technology is adopted to improve the equipment's ability to suppress the product effect and the stability of the equipment. So far, our company is one of the few in China that can produce digital machines on an industrial scale.
3. Lightweight body design saves assembly line space, the whole machine waterproof technology, suitable for wet working environment.
4. The metal detecting head and body frame are made of 304 stainless steel, which is not only sanitary but also durable.
B.Hardware advantages:
1.The stainless steel is 304, which guarantees the corrosion resistance of the equipment.
2.Electrical accessories are selected by schneider electric brand, environmental protection energy saving, safe and reliable.
3.Belt adopts special conveyor belt, through the FDA food certification, has a strong belt anti-pollution, dirty and other performance.
4.The supplier is Shanghai insulation material factory, which is a large state-owned enterprise, and the product quality is guaranteed.
5.The metal detecting head is filled with epoxy resin to ensure the stability and service life of the equipment.
