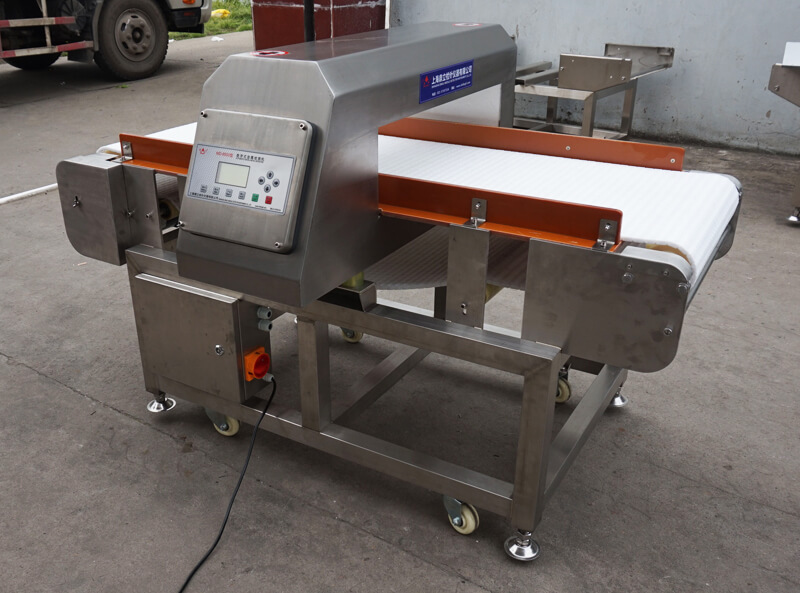

This model is designed for customers who have high requirements for the protection of the whole machine, especially the waterproof performance has been greatly improved. The waterproof grade of the whole machine IP65 can easily cope with the daily operation of water gun washing and cleaning.
Application
Suitable for metal detection of products containing a lot of moisture, such as aquatic products, seafood, fresh products, etc.
Specification
Description | Plate chain conveyor Metal Detector | |||||
Model | MD-8500 | |||||
Standard | 5015 | 5020 | 6015 | 6020 | ||
Power Supply | Ac220V 50-60Hz | |||||
Motor | 90W | 120W | 150W | 180W | ||
Main material | 304 stainless steel | |||||
Detection Width | 500mm | 500mm | 600mm | 600mm | ||
Detection Height | 150mm | 200mm | 150mm | 200mm | ||
Detection Sensitivity | Fe≥φ1.0mm，Non-Fe≥φ1.5mm，Sus≥φ2.0mm | Fe≥φ1.2mm，Non-Fe≥φ2.0mm，Sus≥φ2.5mm | Fe≥φ1.0mm，Non-Fe≥φ1.5mm，Sus≥φ2.5mm | Fe≥φ1.5mm，Non-Fe≥φ2.0mm，Sus≥φ3.0mm | ||
The height from the ground to the conveyor belt | 700mm | |||||
Belt width | 470mm | 470mm | 570mm | 570mm | ||
conveying capacity | 15KG | 20KG | 25KG | 30KG | ||
Conveying Direction | from left to right | |||||
Conveyor maximum speed | 30m/min | |||||
Conveyor belt material | Food grade PVC/PU belt | |||||
Display and operation mode | LCD Screen with soft key button input | |||||
Alarm method | Alarm by sound & light, the conveyor belt stops | |||||
IP grade | IP30（international standard） | |||||
Machine length | 1500mm | 1500mm | 1600mm | 1600mm | ||
Machine width | 960mm | 960mm | 1060mm | 1060mm | ||
Machine height | 960mm | 1010mm | 960mm | 1010mm | ||
Remark：
1. The above detection accuracy is for reference only. The actual detection accuracy shall be obtained after testing.
2. Special specifications can be customized according to customer requirements.
3. The material used for metal detection machine is SUS304, dustproof and waterproof.
4. The detection sensitivity is related to the characteristics of the tested product (humidity, temperature, salt content, mineral content, etc.). In addition, some environmental influences, such as vibration, electromagnetic interference, etc., will have an impact on the actual detection sensitivity of the equipment.
Description of Equipment
Remarks:
A.Design advantages:
1. With automatic identification of product features, 100 product information storage function, automatic phase tracking function, also optional conveyor belt automatic positive and negative rotation function.
2. Advanced digital signal processing technology is adopted to improve the equipment's ability to suppress the product effect and the stability of the equipment. So far, our company is one of the few in China that can produce digital machines on an industrial scale.
3. Lightweight body design saves assembly line space, the whole machine waterproof technology, suitable for wet working environment.
4. The metal detecting head and body frame are made of 304 stainless steel, which is not only sanitary but also durable.
B.Hardware advantages:
1.The stainless steel is 304, which guarantees the corrosion resistance of the equipment.
2.Electrical accessories are selected by schneider electric brand, environmental protection energy saving, safe and reliable.
3.Special plate chain conveyor belt, not only can easily deal with more moisture products, but also easy to clean and maintain.
4.The supplier is Shanghai insulation material factory, which is a large state-owned enterprise, and the product quality is guaranteed.
5.The metal detecting head is filled with epoxy resin to ensure the stability and service life of the equipment.
